Project Size : 2,30,000 Sqm.
This project was awarded in a National Level Competitive bidding process held by DDA in 1999. The 18 hectares site consists of 1336 Dwelling Units with all the required facilities.
Completion : 15th January 2008
No of DU’s Built-up Area
(i) HIG Flats 568 1600 Sq.ft.
(ii) MIG/LIG Flats 768 850 Sq.ft./ 460 Sq.ft
Project Cost : Rs. 120 Cr.
Client : Delhi Development Authority

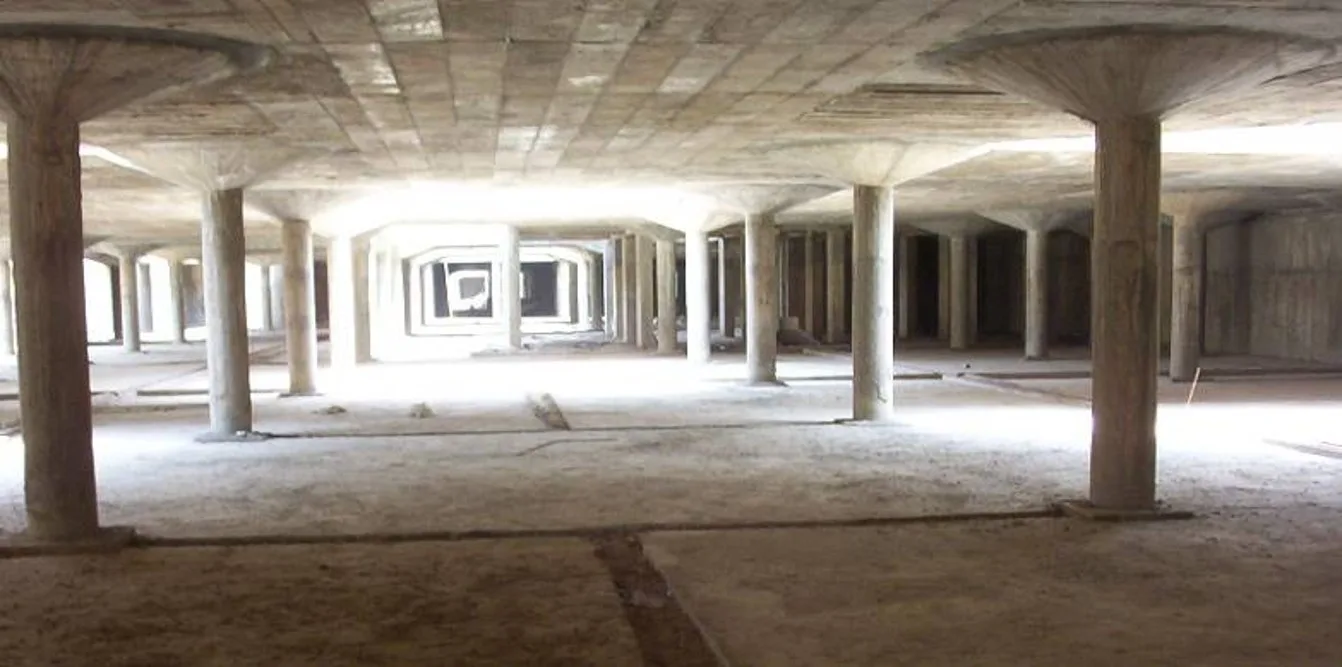

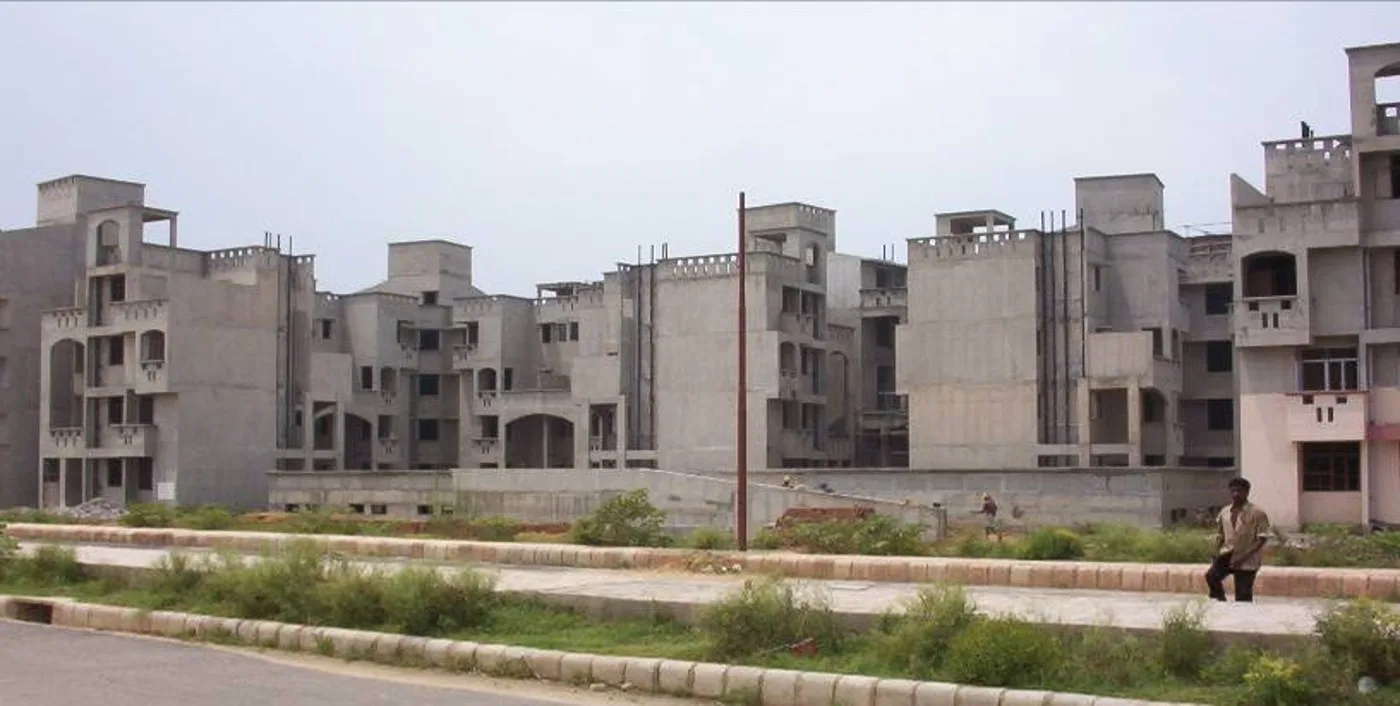

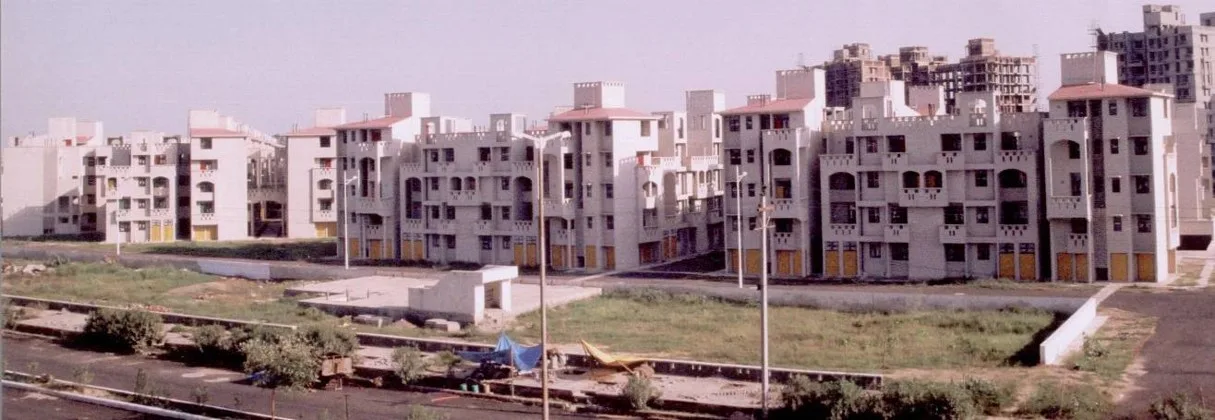

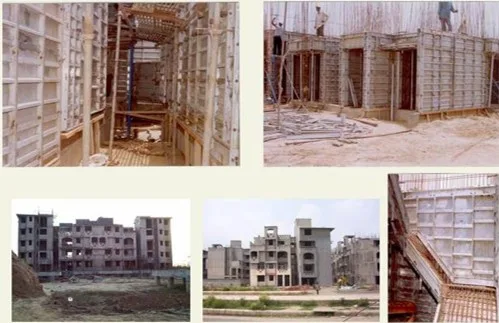

The facilities provided in this complex consists of senior secondary school, three nursery school, community complex, dispensary, mixed land use plots and a large basement approximately half a km. long to cater to 700 car’s parking space . The HIG blocks are multi-storeyed (G+10) while the LIG/MIG complex is five storied. The complex has been built by modern joint less concrete technology with aluminum form work by L&T.
The advantage of joint less concrete technology are
(i) Since wall and roof are casted in one operation the durability of structure increases.
(ii) 5% to 8% more carpet area is available
(iii) More resistant to earthquakes
(iv) Fast, adaptable and smooth finishes are achieved.
Dual water supply system and water harvesting techniques were implemented for the first time in
